OPTIMA-EX[GD] Series
OPTIMA-EX[GD] is a range of industrial plugs from 16 to 125A for
applications in Zone 1/2 (Gas) and 21/22 (Dust).
The enclosure, made of dissipative thermoplastic reinforced with
glass fiber is resistant to impact even at low temperatures.
The efficiency of the contacts over time is guaranteed by the use of
nickel-plated brass pins, resistant to oxidation and aging.
Rated current: 16A-32A-63A-125A
Rated voltage: | >100÷690V |
Frequency: | 50÷60Hz |
Installation temperature: | 2P+E 500V 3P+E / 3P+N+E 690V |
Protection degree: | IP66 |
Temperatura di installazione: | -50°C +60°C |
Enclosure material: | Dissipative thermoplastic reinforced with glass fiber |
Colour: | Black RAL 9011 |
Impact resistance (IK degree): | 7J |
Construction characteristics/ type of closure: | Separate body and handle / Screws with threaded inserts (4) |
Terminals: | Screw 16A-32A Mantle 63A-125A |
Nickel-plated pins: | 16A-32A-63A-125A |
Mobile versions cable entry device: | IP66 cable gland/ external cable clamp |
常用型號：
Cod. 219.1633、Cod. 219.1636、Cod. 219.1637、Cod. 219.3233、Cod. 219.3236、Cod. 219.3237、Cod. 219.6336、Cod. 219.6337、Cod. 219.12536、Cod. 219.12537

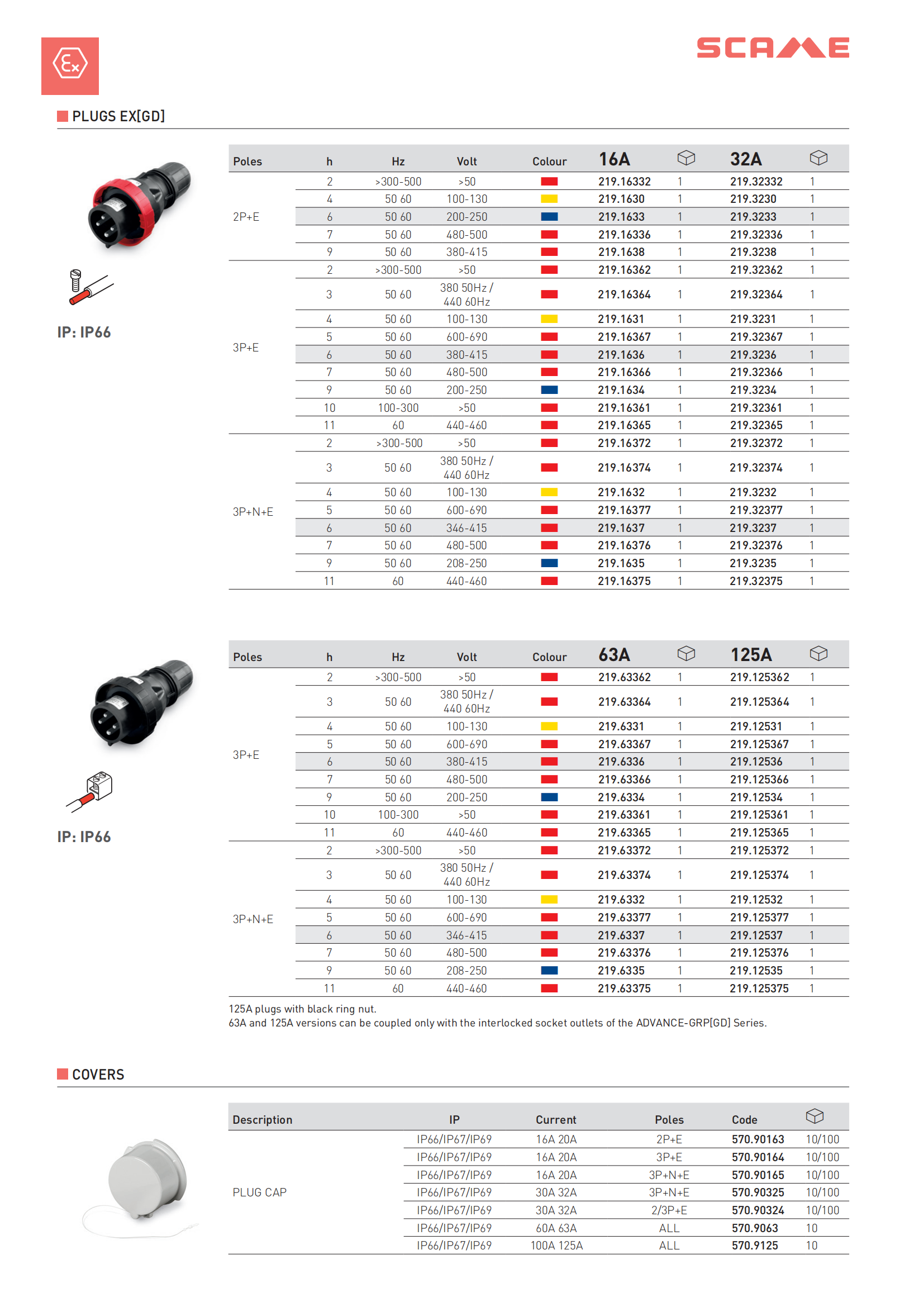

![OPTIMA-EX[GD] Series_5_00.png](/zhikong/Upload/7189s/upload/image/20240717/1721198825420246.png "1721198825420246.png")
